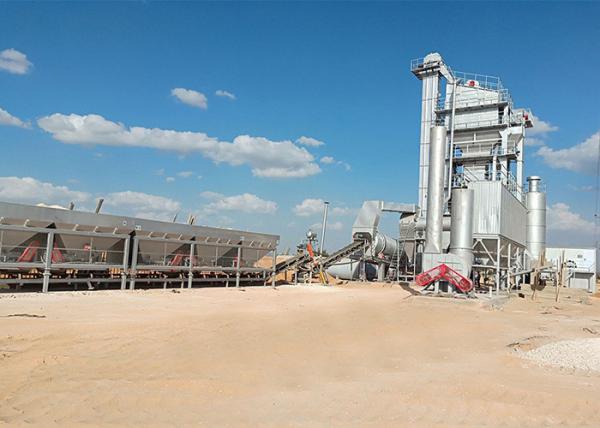

160t/H Capacity Senior Grey Hot Mix Asphalt Plant With House Dust Filter
ZOOMLINE asphalt mixing plant is mainly used in the road construction of highway, freeway, national road, main road, city road, airport, bridge and so on.

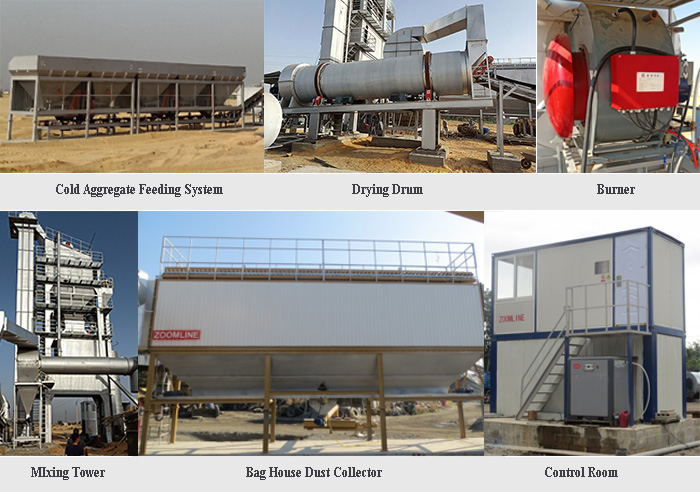

Main components of stationary batching asphalt mixing plant:
Asphalt mixing plant mainly includes cold feeding systems, drying system, burning system, mixing tower system, bitumen supply system, powder supply system, dust removal system, finished product storage bin, control system and other parts.
We accept customization on the configurations.
Technical parameters of ZAP-S160 asphalt batch plant
| ZAP-S160 asphalt batch plant |
| Rated capacity | 160T/H | Standard condition |
| Total power | 500kw | Standard configuration |
| Cold aggregate bins | 4 | |
| Rated drying capacity | 160T/H | 5% moisture |
| Mixing cycle | 45S | |
| Mixer capacity2 | 000kg | |
| vibration screen | Vibrator forced vibrating screen | Four- deck screen |
| Fuel consumption | ≤6.5kg/t finished product | |
| Fuel type | Heavy/ Light oil | Coal burner is optional |
| Control mode | Manual/ Automatic | |
| Finished product temperature | 140-180°C | |
| Aggregate weighting precision | ±0.5% | Dynamic |
| Mineral weighting precision | ±0.5% | Dynamic |
| Bitumen weighting precision | ±0.3% | Dynamic |
| Dust control way | Bag house dust collector | water dust collector is optional |
| Exhaust emission concentration | ≤30mg/Nm3 | |
| Finished product bin | Bottom placed/side placed | Optional |
Models and capacity of ZOOMLINE asphalt plants:
| Items | ZAP-S40 | ZAP-S60 | ZAP-S80 | ZAP-S100 | ZAP-S120 | ZAP-S160 | ZAP-S200 | ZAP-S240 | ZAP-S320 |
| Plant Capacity | 40t/h | 60t/h | 80t/h | 100t/h | 120t/h | 160t/h | 200t/h | 240t/h | 320t/h |
*Asphalt plant capacity is base on standard working condition as followings:
| Atmospheric pressure | 760mmHg |
| Ambient temperature | 20℃ |
| Material passing 40mm mesh | 100% |
| Material passing 3mm mesh | 40% |
| Material passing 74µm | ≤7% |
| Aggregate temperature at discharging end of drum dryer | 160℃ |
| Density of aggregate | 1650kg/m3 |
| Specific heat of aggregate | 0.21kcal/kg℃ |
| Filler content | 5% |
| Bitumen content | 5% |
| Sand content | ≤40% |
| Max.aggregate size | ≤40mm |
| Average moisture of cold aggregates | ≤5% |
| Cycle time per batch | 45s |
| Diesel calorific value | ≥10500Kcal/kg |
| Heavy oil calorific value | ≥9850Kcal/kg |
| Nature gas calorific value | ≥8000Kcal/Nm3 |
| Coal calorific value | ≥5500Kcal/kg
|
Packaging & Shipping
The whole asphalt mixing plant is designed according to standard 40HQ container (40 foot high cube container), suitable for the construction requirement in both home and abroad.
All the components of our asphalt plant can be loaded into the container, which can greatly reduce transport cost.

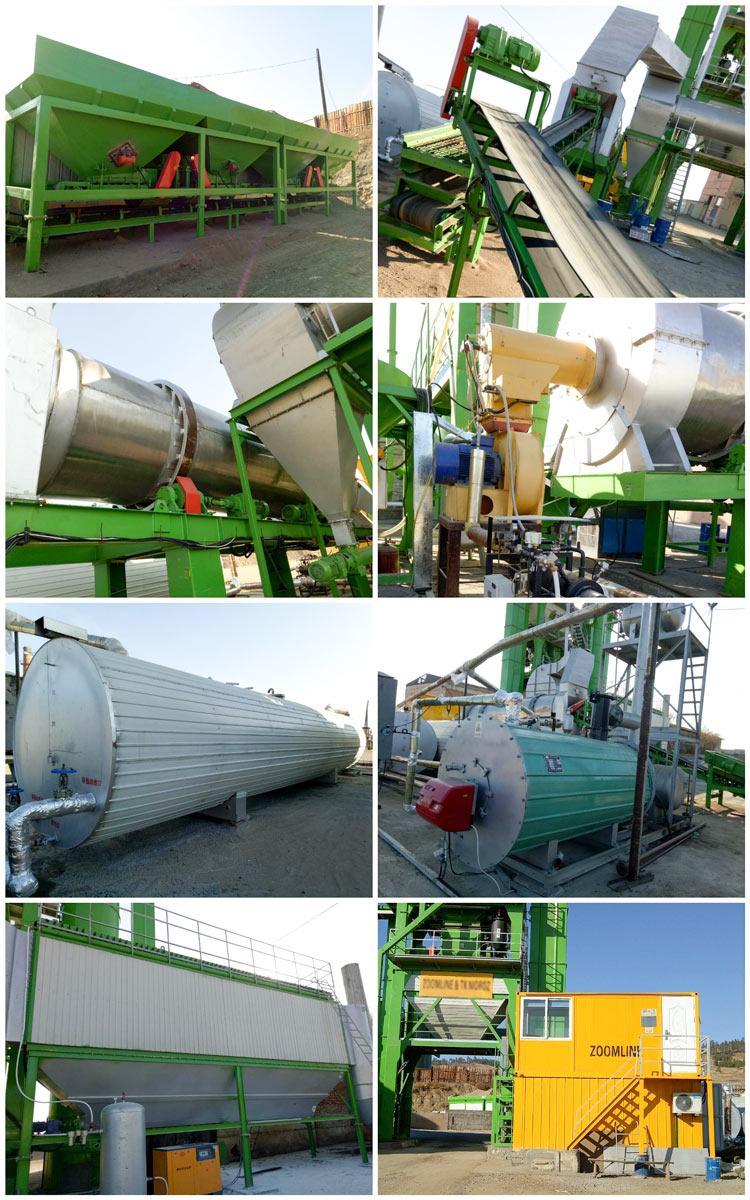

Installation & Debugging on site
Be responsible for each asphalt plant! Be responsible for every customer!
ZOOMLINE Certificate
After nearly 20 years of development, we have won many honors. This proves the role of our company in the industry and our attitude towards products and customers. Our asphalt mixing plants have got CE, EAC, EMC and ISO9001 certificate.
